Hydraulic Lifts
Cost effective systems from 2 persons to 16 persons, motor room less options.
The Flight Range
The Hydraflight is not only a new range of lifts but also a new philosophy in lifts - a philosophy of simplicity. The Flight System is here to make it easy for you to select a lift with its many options, styles, sizes and configurations.
At-a-glance comparisons or comprehensive data let you choose with ease the most suitable size, door types, installation mountings and finishes.
Hydraflight (hydraulic)
Standard features
Swallow Lifts Hydraflight is a premium quality general duty range of passenger elevator designed to provide an economical means of vertical transportation in multilevel buildings.
- Requires only a shallow 1100mm deep pit and headroom of 3400mm
- 1:1 direct or 2:1 Cable Hydraulic Drive System provides smooth, quiet, safe, and dependable operation
- Emergency Battery Powered Lowering with Automatic Battery
- Recharging System in the event of a main building power failure
- Submersible Hydraulic Pump for quiet efficient operation
- Various cab sizes to suit most application from 2 person to 8 person capacity
- Automatic Emergency Cab Lighting in the event of a main building
- power failure for added safety
- Travel capability of up to 18m with up to eight (8) stops
- Floor Selection Control and Anti-Creep Levelling provides smooth
- accurate stops, starts and re-levelling
- Slack Cable Safety Device monitors the cable status. If the device detects a slack cable condition, the elevator "safeties" immediately to stop the elevator and prevent further movement
- Manual Lowering Valve at Pump Unit for added convenience
- Two speed valve for superior ride quality and control for soft stops and starts
Standard Cab Features
- Stainless steel handrail
- Choice of eight (8) Melamine wall panels
- Stainless steel trim
- Control accessories to EN81/70, digital floor indicator in car, voice enunciator, tactile buttons, call recognition signals
- Fluorescent or Solid ceilings with spot lights
- Illuminated push button car and landing control stations
- Automatic timed lighting
- Mirror
Hydraflight
Options
- Variety of cab type configurations available including straight through, 90 degree exit, and three side entry. Custom car sizes to suit existing lift shafts
- Additional selection of other car finishes, glass walls, mirrors, stainless steel, or budget cost skinplate
- Luxurious cab design featuring wood veneers, solid raised oak or recessed panels

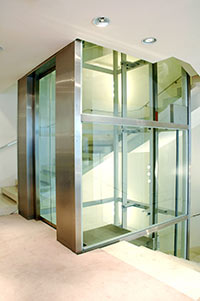

- Observation Cab with laminated glass panels
- motor room less cabinet arrangement
- Firefighting and disabled evacuation control
Technical Aspects
- Power: 415volt 3 phase or 220 Volt, single phase
- Drive: Submersible Two speed hydraulic pump and motor
- Speed: 0.2 m/s – 0.6m/s
- Rated Load: 150kg - 1250Kg
- Shaft sizes – please download technical data sheets
- Emergency Backup: Automatic Emergency Battery Powered Lowering with Automatic Battery Recharging
- Control Type: Collective control up to 4 car grouping
- Electronics: Solid State microprocessor based systems
- Maximum Travel: 18m
- Number of Stops: 8 Maximum
- Pit Depth Required: 1100mm
- Overhead Clearance: 3400mm
